Bio
Polymers |
|
Fermentation
Products |
|
Foods
& Additives |
|
Fine
Chemicals |
|
Genetically
Engineered Substances |
|
Natural Organic Compounds |
|
Physiological
Activated Substances |
|
Pharmaceuticals |
|
Petrochemicals |
|
Rare
Metal & Earth |
|
And
much more ... |
With
|
High
Efficiency |
|
Ultra-selectivity |
|
Short
run times... and... |
|
Retention
of Virtually all Biological |
|
Activity
and Molecular Integrity |
 |
Products and Services
| K-Prep Lab, Pilot & Production
Scale HPLC Systems from Kyoto Chromato |
K-Prep series: Prep-HPLC system with preparative fraction
collection
Our fully automated preparative
liquid chromatographs are ideal for the isolation and
purification of high-value substances such as drugs
(API), additives, and fine-chemical products. Three
basic types of systems are offered depending on your
scale of operation.
Systems are available for purifications from lab through
pilot to production-scale. Each system features:
Fully automated continuous operation capability
via computer control
Interactive interface
Precise and speedy isolation by isocratic or gradient
elution chromatography
Compactness, portability, and simplicity
Provision of security function
Design features aiming at easy maintenance
Easily expandable instrumentation
Compatibility with GLP/GMP validation
Numerous options including column recycle
System features are customizable for your purification
needs (eg. High or low pressure operation, automated
injection, UV, pH, conductivity probes, etc.)
K-Prep LAB
Application: For purposes such
as discovery and development and investigation of
commercial feasibility
 |
| Standard
Specifications |
| Standard column
size |
Diam. 20, 30, 50 and
100mm |
| Pump |
double plunger cam |
| Flow Rate |
100, 300mL/min |
| Type |
single gradient |
| Detector |
ultra-violet spectrometer detector |
| Maximum Pressure |
15MPa (100mL/min), 10MPa (300mL/min) |
| Pressure gauge |
digital pressure gauge (per PC) |
| Fraction |
10ch (20ch) |
| Sample injection |
auto-injector |
| Control and display |
laptop PC or programmable computer |
| Options |
various |
|
K-Prep FC
Application: Commercialization investigation
or industrial use.
 |
| Standard
Specifications |
| Standard column size |
Diam. 50, 100, 150 and 200mm |
| Pump |
double plunger cam |
| Flow Rate |
500, 1000 mL/min |
| Type |
single gradient |
| Detector |
UV spectrometer detector |
| Maximum Pressure |
10MPa |
| Pressure gauge |
digital pressure gauge (displayed on PC) |
| Fraction |
5ch |
| Sample injection |
automatic (50mL, 100mL) |
| Control and display |
PC with touch-screen display |
| Options |
various |
|
K-Prep EX
Application: Each unit is custom-designed.
The control software runs on Window OS using a PC
and is capable of automated operation. The system
may be validated for operation in GMP environments.
EX Systems may be configured for operation in hazardous
areas.
 |
Depicted in this photograph
is an example system with a flow rate of 26L/min,
a UV detector, and columns measuring 450mm
in the internal radius. |
Download
K- Prep specifications (pdf, 1.04mb, Adobe Reader
required).

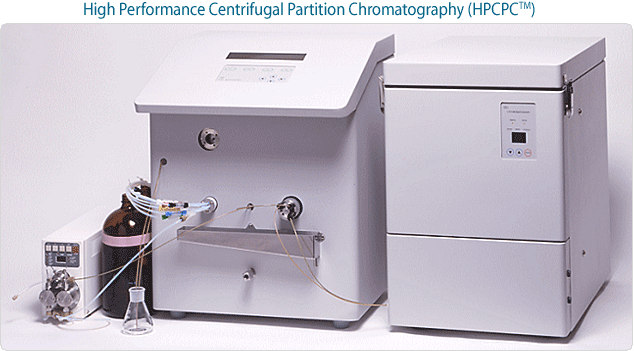

KROMATON, expert in Centrifugal Partition Chromatography
The alternative to standard preparative techniques
KROMATON is an innovating firm pionneer in Centrifugal Partition Chromatography (CPC).
Since 1999, we have been developing a wide range of complete FCPC® systems (Fast Centrifugal Partition Chromatography), for the extraction, separation and purification of natural, biological or synthetic molecules.
FCPC C
Ultra Fast CPC
FCPC A
Flexible for Easy Scale Up
FCPC B &D
Industrial Scale CPC
Centrifugal Partition Chromatography (CPC), or Countercurrent Chromatography (CCC), is a liquid/liquid preparative chromatography technique. It is considered today as the true and proven alternative to standard techniques such as HPLC or Flash Chromatography:
No costly solid packing material
No sample loss and 100% recovery
No denaturation of fragile molecules
Low solvent consumption
An effective, soft and cost-efficient technique
Benefiting from the Rousselet Robatel Group know-how, our range of Centrifugal Partition Chromatography systems FCPC® are designed and manufactured for research and development laboratories, pilot plants as well as industrial production plants in the chemical-pharmaceutical industries, cosmetics, biotechnologies or natural products field.
 |
|
 |
